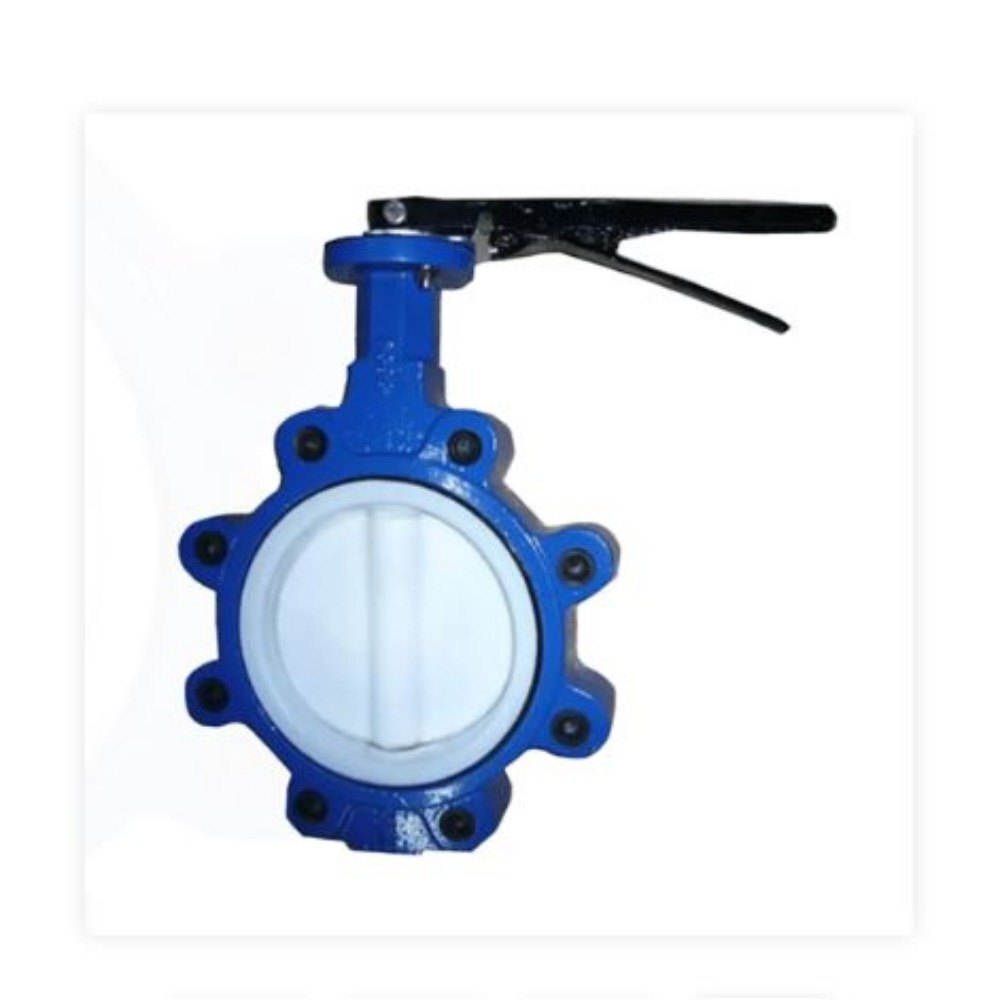

PFA Lined Lug Type Butterfly Valve

PFA Lined Lug Type Butterfly Valve Specification

Connection
Lug Type

Valve Type
PFA Lined Lug Type Butterfly Valve

Size
40NB to 400NB

Material
Other

Power Source
Manual / Actuated

Product Type
PFA Lined Lug Type Butterfly Valve

Pressure
Up to 10 Bar

Media
Corrosive Liquids & Chemicals

Working Temperature
-20C to +180C

Color
As Per Requirements

Port Size
40NB to 400NB

Shape
Round

Warranty
1 year

PFA Lined Lug Type Butterfly Valve Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cheque

Main Domestic Market
All India

About PFA Lined Lug Type Butterfly Valve

Wafer/Lug Style, Slim Seal, Integral Stem & Centric Disc Design, Lever/Gear Operated Type Cast Ductile Iron Fully Lined Butterfly Valve suitable for corrosion & temperature resistance. Confirming to mfg. std. of BS 5155 /API 609 and testing std. of BS 6755

A self-adjusting stem sealing system ensure zero leakage to the atmosphere. Silicon Seat back up with PTFE / PFA Liner and spherical disc design provides consistent tight shut off.

This Valve can also be supplied with stainless steel body for clean room applications as well as corrosive services. The disc can be supplied in Unlined Stainless Steel , Monel , Hastalloyor other exotic materials also. Alternatively Valve can be supplied with Gearbox / Pneumatic / Electric Actuator

Exceptional Chemical Resistance

The PFA lining and PFA-coated wetted parts ensure superior resistance to highly corrosive chemicals, making this valve ideal for aggressive process applications. This robust construction extends the valves operational lifespan while minimizing maintenance requirements.

Versatile Actuation and Installation Options

The PFA Lined Lug Type Butterfly Valve offers flexibility with manual lever, gear, electric, or pneumatic actuators. Its lug-type connection enables easy mounting between flanges, adhering to ASME/ANSI standards, and can be installed horizontally or vertically depending on system requirements.

Reliability in Diverse Industries

Engineered for versatility, the valve is widely used in chemical processing, petrochemical, pharmaceuticals, and wastewater treatment plants. Its robust materials and design standards ensure consistency and safe operation, even in challenging working environments.

FAQs of PFA Lined Lug Type Butterfly Valve:

Q: How does the PFA lining benefit the butterfly valves operation in chemical processing?

A: PFA (Perfluoroalkoxy) lining offers exceptional corrosion resistance, protecting both the valve body and internal components when handling aggressive chemicals. This ensures reliable sealing, enhances durability, and extends the service life of the valve in demanding chemical industries.

Q: What is the process for installing a PFA Lined Lug Type Butterfly Valve?

A: Installation involves aligning the lug-type valve between pipeline flanges as per ANSI/ASME B16.5, tightening the bolts without overtightening, and ensuring the gasket surfaces are intact. The valve can be mounted horizontally or vertically, depending on piping requirements.

Q: When should I use an electric or pneumatic actuator instead of manual operation?

A: Electric or pneumatic actuators are recommended when remote or automated control is needed, frequent cycling occurs, or for valves in hard-to-reach or hazardous locations. Manual levers or gears are suitable for infrequent operation or where quick service is needed.

Q: Where can this butterfly valve be applied within industrial sectors?

A: The valve is highly suitable for chemical processing, petrochemical, pharmaceutical, and wastewater treatment applications due to its corrosion resistance, bubble-tight sealing, and compliance with international standards.

Q: What are the benefits of choosing a lug type connection for butterfly valves?

A: Lug type connections provide secure mounting, easy installation and removal from the line, and facilitate dead-end service. They also comply with ANSI/ASME B16.5 flange patterns for compatibility and improved maintenance access.

Q: How easy is it to maintain and service the PFA Lined Lug Type Butterfly Valve?

A: Minimal maintenance is required due to the PFA linings resistance to chemical attack and build-up. Regular inspection for wear on seals and moving parts is recommended. The simple design allows for easy disassembly and maintenance when needed.

Q: What is the valves maximum operating pressure and temperature range?

A: The PFA Lined Lug Type Butterfly Valve is rated for pressures up to 10 Bar (PN 10/16) and can handle temperatures from -20C to +180C, making it suitable for a wide array of industrial media and process conditions.
