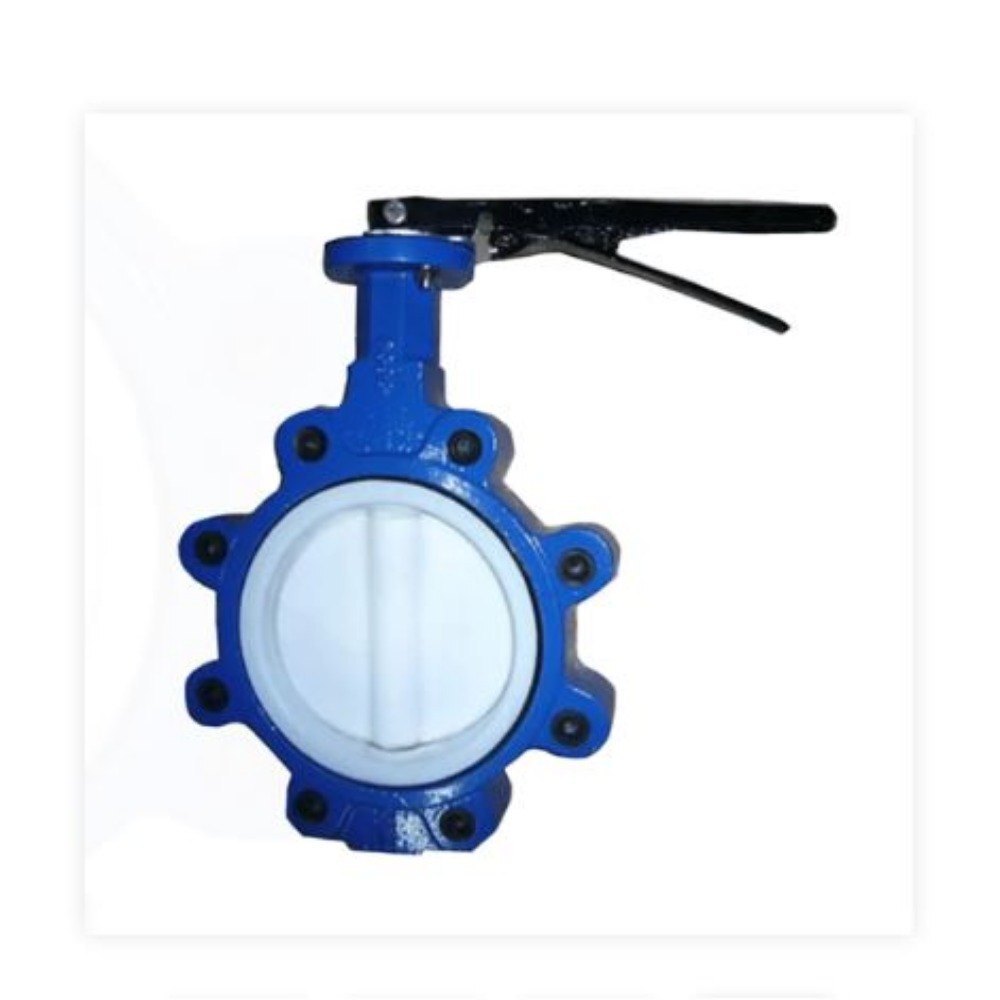

FEP Lined Lug Type Butterfly Valve

FEP Lined Lug Type Butterfly Valve Specification

Color
As Per Requirements

Size
40NB to 400NB

Product Type
Lined Lug Type Butterfly Valve

Valve Type
Lug Type Butterfly Valve

Material
Other

FEP Lined Lug Type Butterfly Valve Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Cash Against Delivery (CAD), Cash Advance (CA)

Main Domestic Market
All India

About FEP Lined Lug Type Butterfly Valve

Wafer/Lug Style, Slim Seal, Integral Stem & Centric Disc Design, Lever/Gear Operated Type Cast Ductile Iron Fully Lined Butterfly Valve suitable for corrosion & temperature resistance. Confirming to mfg. std. of BS 5155 /API 609 and testing std. of BS 6755

A self-adjusting stem sealing system ensure zero leakage to the atmosphere. Silicon Seat back up with PTFE / PFA Liner and spherical disc design provides consistent tight shut off.

This Valve can also be supplied with stainless steel body for clean room applications as well as corrosive services. The disc can be supplied in Unlined Stainless Steel , Monel , Hastalloy or other exotic materials also. Alternatively Valve can be supplied with Gearbox / Pneumatic / Electric Actuator
