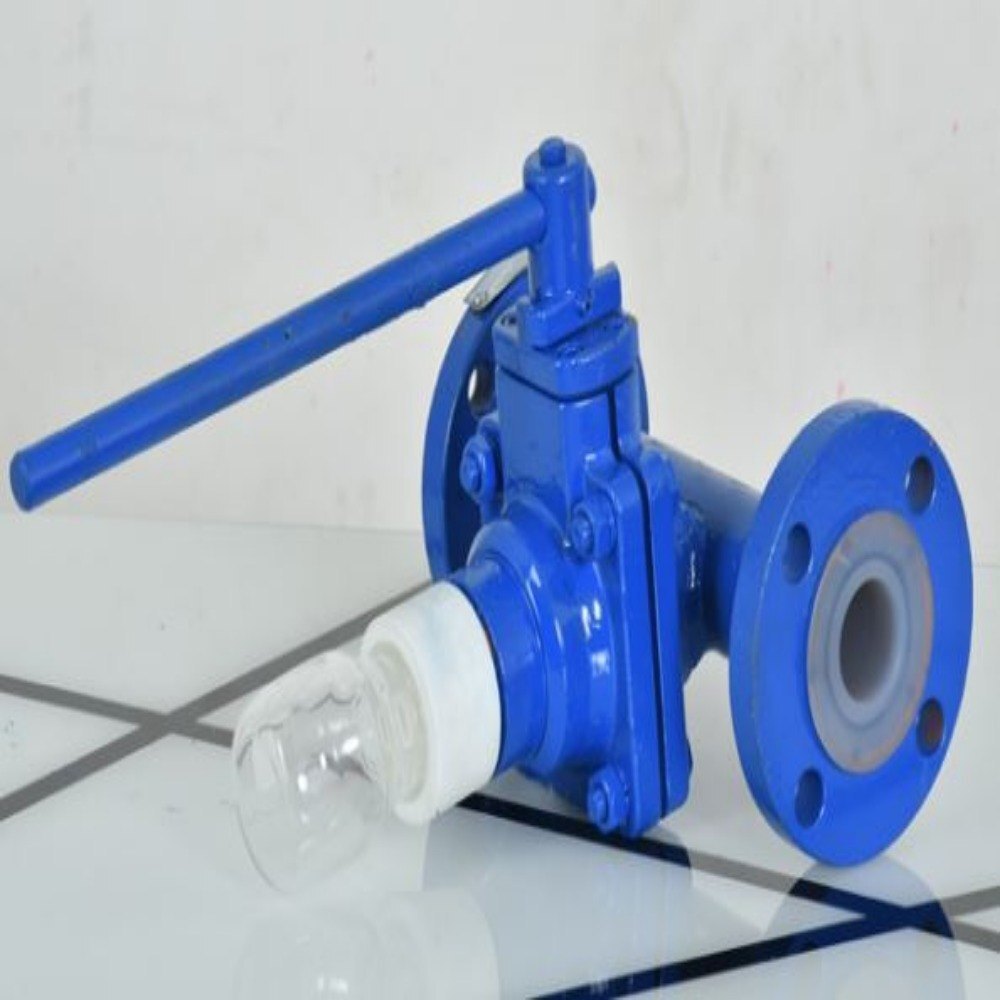

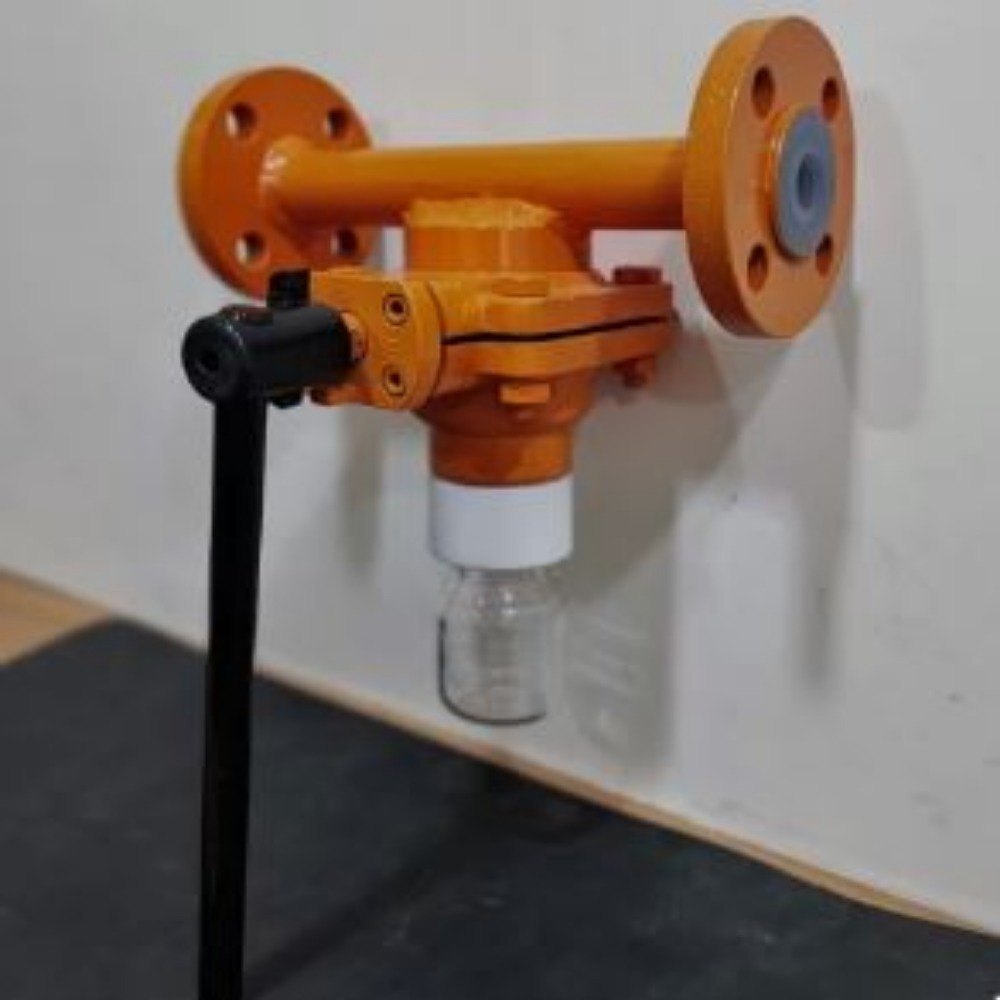

PFA Lined Sample Valve

PFA Lined Sample Valve Specification

Material
SGI

Product Type
Lined Sample Valve

Size
25NB to 100NB

Color
As Per Requirements

Temperature
PFA Lined Temperature 240C Celsius (oC)

PFA Lined Sample Valve Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cheque

Main Domestic Market
All India

About PFA Lined Sample Valve

Sampling Valves are installed directly in the pipeline or in a bypass piping system Collecting a liquid sample with our cavityfree design results in a representative sample taken directly from the media flowing through the pipeline

Sampling is carried out without interrupting the process under pressure or vacuum The samplers can optionally be installed horizontally or vertically

In connection with a closed Piston Injector also gases can be sampled besides liquids without coming in contact with the atmosphere or with the operator Our sampling valves and systems are the preferred choice for applications in the chemical pharmaceutical and refining industries and are suitable for piping systems with flange connections per ASME B165 or DIN standard EN 1092 with facetoface dimensions per ASME B1610 or EN 5581 range 1 Compact wafer connections typically with a facetoface length of 62mm 244in are also available
